| D.O.P. |
P.S.L. |
Testing |
99.99%
99.97% |
at |
0.3µm |
Operating Conditions
- Apply Temperature: 80°C
- Apply Humidity: 100%RH (No Dew)
- Separator air filter
Qualified With
- Std. EN 1822 Class H11~H14
- Std. IES RP-CC-001.3 TYPE A / B / C / D
Specifications
| Model |
Dimension |
Capacity |
Initial P.D. |
Final P.D. |
(*without inlet duct)
Length * Width * Depth |
| H4BA305305150 |
305×305×150 mm |
3.9 CMM (138 CFM) |
25.4 mmH2O
（249 Pa）
*face velocity:
0.85 m/s |
50.8 mmH2O
（500 Pa）
*recommend |
| H4BA305610150 |
305×610×150 mm |
8.1 CMM (286 CFM) |
| H4BA610610150 |
610×610×150 mm |
17.2 CMM (607 CFM) |
| H4BA760610150 |
760×610×150 mm |
21.6 CMM (763 CFM) |
| H4BA915610150 |
915×610×150 mm |
26.2 CMM (925 CFM) |
| H4BAC20610150 |
1220×610×150 mm |
35.2 CMM (1243 CFM) |
| H4BAF25610150 |
1525×610×150 mm |
44.2 CMM (1561 CFM) |
| H4BAI30610150 |
1830×610×150 mm |
53.2 CMM (1879 CFM) |
| H4BA305305290 |
305×305×290 mm |
7.1 CMM (251 CFM) |
25.4 mmH2O
（249 Pa）
*face velocity:
1.56 m/s |
50.8 mmH2O
（500 Pa）
*recommend |
| H4BA305610290 |
305×610×290 mm |
14.9 CMM (526 CFM) |
| H4BA610610290 |
610×610×290 mm |
31.5 CMM (1112 CFM) |
| H4BA760610290 |
760×610×290 mm |
39.6 CMM (1398 CFM) |
| H4BA915610290 |
915×610×290 mm |
48.0 CMM (1695 CFM) |
| H4BAC20610290 |
1220×610×290 mm |
64.6 CMM (2281 CFM) |
* Special dimension can be customized

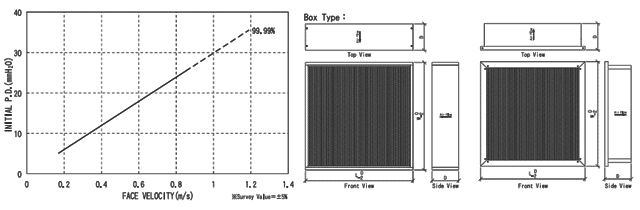

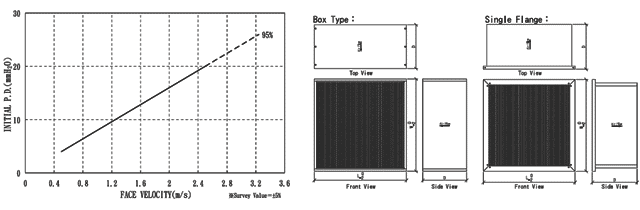

Performance Chart & Filter Three-View
