Compound Engineering Plastics
The researches of A 3D turbo fan made by own company which High-efficient/Low-noise/Low-vibration/Average air flow/Non-oxidized and Resistant against alkali acid with fine features.
Product Features

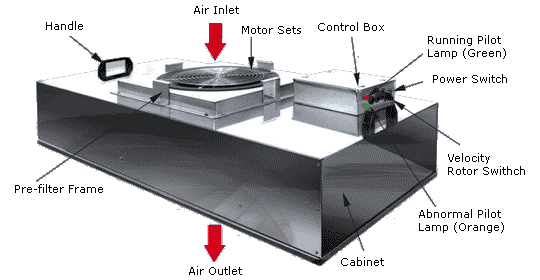

- 3D Airfoil turbo fan High-efficient & Low-noise
A 3D turbo fan made by aluminum which pursued the most suitable design by computer analysis.
- Flexible change design
The specifications of unit can be designed according to customer’s requirements besides our standard models, example for the modification of main filter type, cabinet materials…etc.
- Convenient design of installation
Pre-filter frame board above unit to make prefilter easy installation and maintenance.
- Easy carry/handle friendly design
The transportation and installation of unit is easy with carrying handle and the outlook of units is pretty.
- Multiple safe protect devices
The overload current protection circuit, abnormal pilot lamp,abnormal signal circuit (common fault output dry contactor:NC X 1 Set),motor temperature control switch protection circuit ...etc. for requirement.
Specifications
| Item |
Specification |
Remarks |
| Module Size |
600 * 1200 mm |
Module size can be designed according to customers requirements besides standard module. |
| 900 * 1200 mm |
| 750 * 1500 mm |
| 1200 * 1200 mm |
| Air Flow Velocity |
1Φ |
0.4/0.35/0.3m/s(Hi/Me/Lo) |
| 3Φ |
0.35m/s |
| Main Filter |
HEPA |
0.3μm Over 99.99% |
HEPA:High Efficiency Particulate Air |
| ULPA |
0.1μm Over 99.9995% |
ULPA:Ultra Penetration Air |
| 0.1μm Over 99.99995% |
| 0.1μm Over 99.999995% |
| PTFE |
0.1μm Over 99.9995% |
PTFE:Poly Tetra Fluoro Ethylene |
| Main Body |
Standard |
Stainless Steel (SUS430) |
| Option |
Galvanized Sheet Iron |
| AL-ZN Alloy Sheet |
| Coating Sheet Iron |
| Power Supply |
Standard |
3Φ 220V 60Hz， 1Φ 220V 50Hz，1Φ 220V 60Hz |
| Option |
3Φ 380V 50Hz，3Φ 380V 60Hz，3Φ 208V 50Hz，3Φ 208V 60Hz |
| Option |
- Pre-filter
- Power plug and cable
- Duct flange for suction air
|
As each FFU has over current relay unit, the capacity of switchboard can be applied up on request. |
Filter
- As demands of cleanliness with process of semiconductor or LCD manufacturer,you are able to choose the fittest filter of particle diameter, dust collection efficiency, etc.
- If you need the filter without B(Boron), We recommend PTFE (Poly Tetra Fluoro Ethylene)filter that is made of material of membrane.
- If you must avoid DOP(Di Octyl Phthalate) for testing filter, please inform us to test with silica without water or atmospheric air.

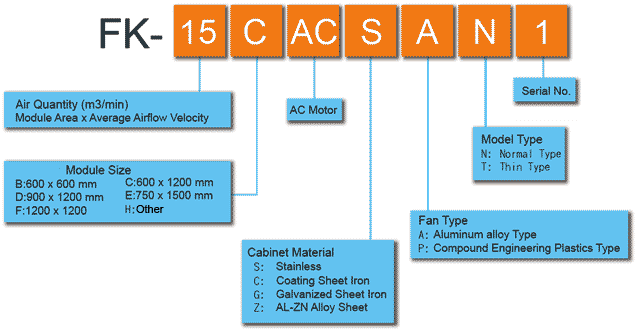

Model Type

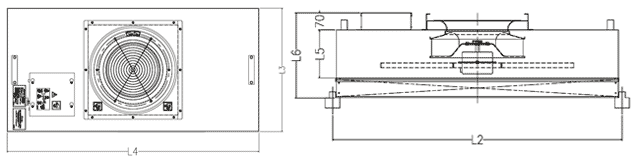

Outside Dimension
Standard Type
| Module Size |
Model |
L1 |
L2 |
L3 |
L4 |
L5 |
L6 |
| C |
FK-15CACSAN1 |
600 |
1200 |
574 |
1174 |
195 |
348 |
| FK-15CACSPN1 | |
 |
1 Phase Motor
| Model Type |
FK-15CACSAN1 |
FK-15CACSPN1 |
| Module Size |
mm |
600 * 1200 |
600 * 1200 |
| Air Quantity |
m3/min |
15 |
15 |
| Average Airflow Velocity |
m/s |
0.4 / 0.35 / 0.3 |
0.45 / 0.4 / 0.35 |
| Total Static Pressure |
pa |
80 pa (Me step) |
190 pa (Me step) |
| Filter |
Efficiency |
- |
over 99.99% at particle diameter over 0.3μm |
over 99.99% at particle diameter over 0.3μm |
| Frame |
- |
Aluminum |
Aluminum |
| Fan Runner |
Quantity |
unit |
1 |
1 |
| Type |
- |
Airfoil turbo fan runner
(Aluminum) |
Airfoil turbo fan runner
(Compound Engineering Plastics) |
| Power Source |
- |
1Φ 220V 60Hz |
1Φ 220V 50Hz |
1Φ 220V 60Hz |
1Φ 220V 50Hz |
| Electric Power Consumption |
W |
130 |
150 |
130 |
150 |
| Weight |
kg |
24 |
24 |
24 |
24 |
| Noise (under 1.5m of filter) |
dB(A) |
52 |
52 |
52 |
52 |
PS:
1.For aboved performance data is for Specification Types, without notices if any modifying.
2.The variable data is according to difference specification for aboved.

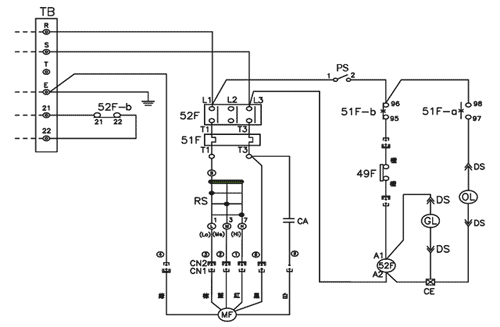

Wiring Diagrams
| Mark |
Name |
| MF |
Fan Motor |
| 51F |
Overcurrent Relay |
| 52F |
Contactor |
| CA |
Capacitor |
| PS |
Power Switch |
| 49F |
Internal Thermostat for Fan Motor |
| TB |
Terminal Block |
| RS |
Velocity Rotor Switch |
| GL |
Running Pilot Lame (Green) |
| OL |
Abnormal Pilot Lamp (Orange) |
| CN, DS, CE |
Connector |
Example for Standard Models (Terminak Base Connection)
Power Source: AC 1Φ, 220V, 60Hz
Caution: Please distribute for broken line at building side. |
